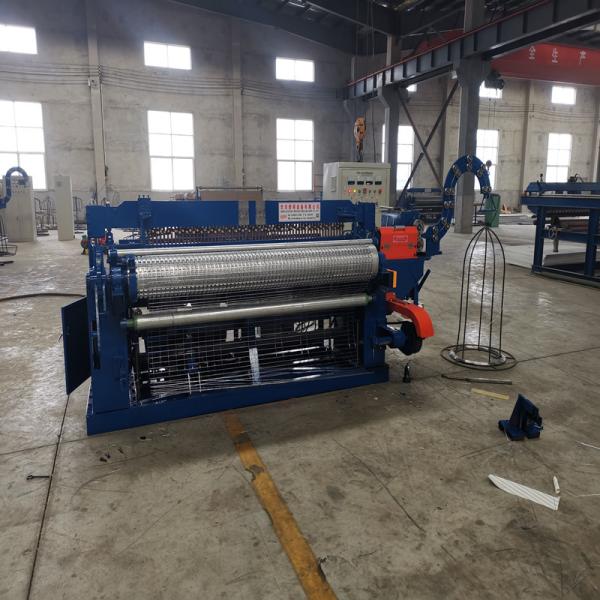

6ft Highway Reinforcing Mesh Welding Machine Automatic

Name: 6ft Highway Reinforcing Mesh Welding Machine Automatic
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Highway Using Automatic Roll Mesh Welding Machine

Suitable wire to the machine : Low carbon steel wire

Key Selling Points : Easy to Operate

Advantage : High Welding Speed

Pitch : 1/2", 1", 2", 3", 4"

Production capacity : 30-100rolls/8hours

Roll length : 100 m

Core Components : Engine, Gearbox, Motor, Gear

Aperture/pitch : 1", 2", 3", 4" 25, 50, 75, 100mm

Contact Now

Highway Using Automatic Roll Mesh Welding Machine

1. Product description

Highway Using Automatic Roll Mesh Welding Machine is used for making roll mesh.The horizontal wire and vertical wire feeding automatically, mesh coiling automatically, the machine will stop automatically when it reaches the setting length. It adopts separate times welding, reduced the load of the power source, making energy-efficient.

2. Technical parameter

Model	Mesh width	Minimum mesh size (inch)	Wire diameter(mm)	Welding speed (rows/min)	Roll mesh length (m)	Other available mesh size (inch)
R- DHW	6 feet	1/2x1/2	0.45-0.85	90-120	130	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.6-1.3	90-120	110	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.8-1.6	80-90	100	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1x1	0.45-0.85	90-120	130	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.6-1.3	90-110	110	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.8-1.6	90-110	100	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	1.4-2.6	80-90	80	1x2, 2x1, 2x2, 2x4

3. Application area

Highway Using Automatic Roll Mesh Welding Machine is also used for fences and cages. It also plays a vital, load-bearing role in oven and barbecue grills, refrigerator shelves and racks, shopping carts and dishwasher baskets. Further, it is used in reinforced mesh to lend stability to concrete.

4. Advantages

a. The brake motor & helical gear reducer connect principal axis directly, which is with strong power, and stable work ability.

b. Testing machine before shipping.

c. Thorn shaft pulls the mesh. Cross wire space depends on the thorn shaft .So we can produce the thorn shaft as you need.
